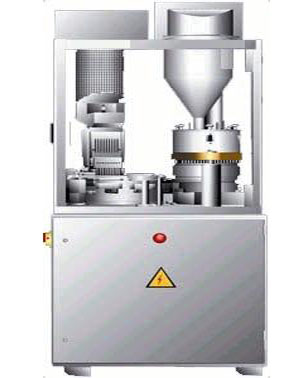

Automatic Capsule Filling Machine: SD Series
Features and Benefits:
1. A semi turning, hole platen type filling machine.
2. Advanced structure, modern design, accurate dosage,
adjustable portion, safety operation and frequency register.
3. From 00# to 5# of hard plastic capsules and A B C D E
over stable capsules can be filled using different
specifications of moulds
4. it can be single closing ease pill and the same to close the
powder and pellet.
5. High working effciency, good suitability, stable woking
state and low noise levels
6. Computer controller, has frequency conversion, digital
display makes an easy operation and clear appearance |

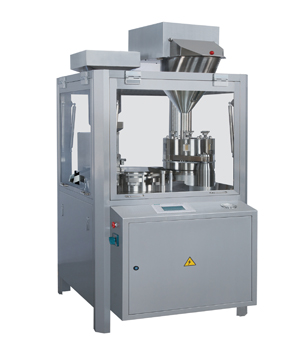

SD fully automatic capsule filling machine can replace mould (replace die role amount) to change the capacity of the
machine.The max capacity of 800 model with six mould roles is 800pcs/min, the max capacity of 1000model with eight mould
roles is 1000pcs/min, and the max capacity of 1200 model with nine mould roles is 1200pcs/min.
Power |
220V three phases 4wires 50HZ |
Suitable capsule size |
No.00 .0 .1 .2 .3 .4 .5 |
Total power |
6.5KW |
Main motor power |
1.5kw |
Capsule processing rate |
≥98% |
Degree of vacuum |
(–0.04)-0.08MPa |
Water supply pressure |
0.4Mpa |
Water flow rate |
0.25m3/h |
Inner diameter of water supply pipe |
16mm |
Inner diameter of water outlet pipe |
32mm |
Size |
970*820*1900mm |
Weight |
800kg |
Operation conditions requirement |
temperature 21℃±3℃ |
Relative humidity |
45-65% |
Supply air requirement |
with exhaustment over 360m³/h of dust collector for industry |
Packing list
Name |
Quantity |
Filling Machine |
One |
Dust Collected |
One |
Vacuum Pump |
One |
Mould (Tool case) |
One |
Dosage Tray Case |
One |
Certificate of Quality |
One |
Frequency Reguist Operation Manual |
One |
Filling Machine Operation Maintenance Manual |
One |
